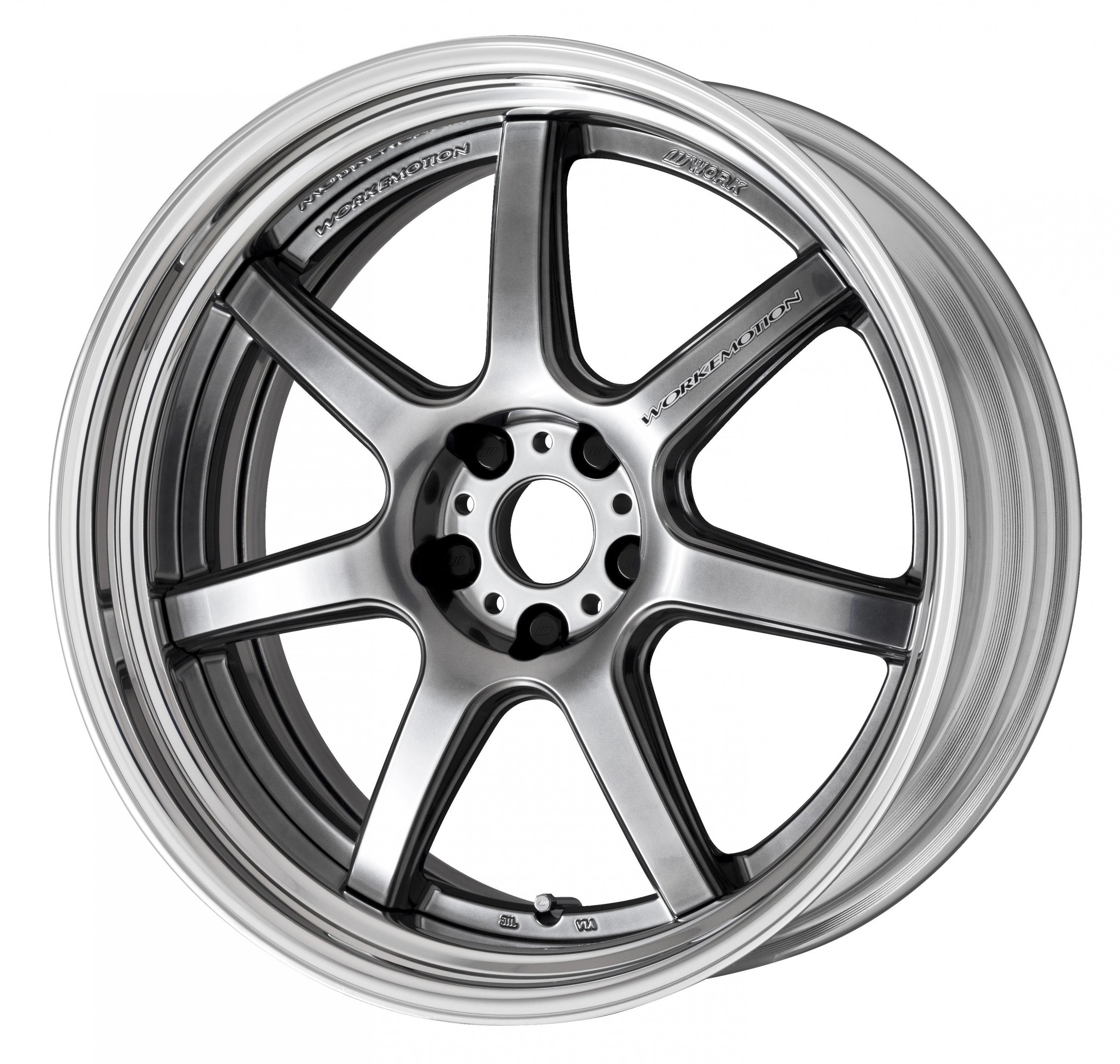

Construction
2 piece construction
Constructions
Barrel and disc are molded and constructed separately. The new method of jointing parts of the 2-piece wheel together is through welding.
Advantages
The offset can be specially altered millimeter by millimeter to your ideal position of the disc face.
Specification
Sizing
18", 19", 20"
18 INCH [FLAT RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-98 to 120.65 [A, L & R disk only]

Width: 18 X 7.0 to 18 X 12.5

Disk Type:
A disk - Standard brake clearance [Deep concave]
L disk - Big caliper brake clearance [Semi concave]
R disk - Big caliper brake clearance [Semi concave]

Offset: Download PDF chart above to see options.
19 INCH [FLAT RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-98 to 120.65 [A, L & R disk only]

Width: 19 X 7.5 to 19 X 12.5

Disk Type:
A disk - Standard brake clearance [Deep concave]
L disk - Big caliper brake clearance [Semi concave]
R disk - Big caliper brake clearance [Semi concave]

Offset: Download PDF chart above to see options.
19 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-98 to 120.65 [A, L & R disk only]

Width: 19 X 8.0 to 19 X 12.5

Disk Type:
A disk - Standard brake clearance [Deep concave]
L disk - Big caliper brake clearance [Semi concave]
R disk - Big caliper brake clearance [Semi concave]

Offset: Download PDF chart above to see options.
20 INCH [STEP RIM] - PCD, Width, Disk Type & Offset
PCD: 5H-98 to 120.65 [A, L & R disk only]

Width: 20 X 8.0 to 20 X 12.5

Disk Type:
A disk - Standard brake clearance [Deep concave]
L disk - Big caliper brake clearance [Semi concave]
R disk - Big caliper brake clearance [Semi concave]

Offset: Download PDF chart above to see options.
Center Disk colour options
White [WHT] - Standard
Gloss Black [BLK] - Standard
Matt Black [MBL] - Standard
AHG Bronze [AHG] - Standard
GMB Bronze [GMB] - Standard
Gold [GLD] - Standard
Platinum Gold [PG] - Standard
Gloss Gunmetal [GM] - Standard
Matt Gunmetal [MGM] - Standard
Gloss Silver [SIL] - Standard
Matt Silver [MSL] - Standard
Fein Heit Silver II [FS2] - Standard

COLORISM
Cassis Haze [CHP] - Additional cost
Energy Mint [EMP] - Additional cost
Kiwi Power [KWP] - Additional cost
Mandarin Alert [MAO] - Additional cost
Barrel [rim] colour options
Polished anodized rim - Standard
Brushed anodized rim - Additional cost
Gloss or Matt Bronze anodized rim - Additional cost
Gloss or Matt Black anodized rim - Additional cost
Included with each wheel
1 X Air Valve
1 X Decal
Optional items
Center caps options
WORK X JDM CONCEPT CAP
EMOTION BLACK LOW CAP
EMOTION BLACK HIGH CAP
EMOTION SILVER LOW CAP
EMOTION SILVER HIGH CAP
EMOTION RED LOW CAP
EMOTION RED HIGH CAP
EMOTION BLUE LOW CAP
EMOTION BLUE HIGH CAP
EMOTION CAP COMPARISON
MCO BLACK LOW CAP
Outer rim / lip colour options
POLISHED ANODIZED
BRUSHED ANODIZED
GLOSS BLACK ANODIZED
MATT BLACK ANODIZED
GLOSS BRONZE ANODIZED
MATT BRONZE ANODIZED
Center disk colour options
WHITE [WHT]
MATT BLACK [MBL]
GLOSS BLACK [BLK]
MHG BRONZE [MHG]
GMB BRONZE [GMB]
GOLD [GLD]
PLATINUM GOLD [PG]
MATT GUNMETAL [MGM]
GLOSS GUNMETAL [GM]
MATT SILVER [MSL]
GLOSS SILVER [SIL]
FEIN HEIT SILVER II [FS2]
Decals options
EMOTION DECAL A
Wheels valves options
CHROME [V24C]
CHROME [V27C]
CHROME [V39A]
